2x4 Port Female SFP Connector 160 Pin with Light Pipe

認証
中国 Dongguan Fuyconn Electronics Co,.LTD 認証
中国 Dongguan Fuyconn Electronics Co,.LTD 認証
オンラインです

2x4 Port Female SFP Connector 160 Pin with Light Pipe

2x4 Port Female SFP Connector 160 Pin with Light Pipe
2x4 Port Female SFP Connector 160 Pin with Light Pipe 2x4 Port Female SFP Connector 160 Pin with Light Pipe 2x4 Port Female SFP Connector 160 Pin with Light Pipe 2x4 Port Female SFP Connector 160 Pin with Light Pipe 2x4 Port Female SFP Connector 160 Pin with Light Pipe 2x4 Port Female SFP Connector 160 Pin with Light Pipe

大画像 :  2x4 Port Female SFP Connector 160 Pin with Light Pipe

商品の詳細:
起源の場所: 中国広州
ブランド名: FUYCONN
モデル番号: fuysfp2015-28
お支払配送条件:
最小注文数量: 100
価格: $15

2x4 Port Female SFP Connector 160 Pin with Light Pipe

説明
ポートの数: 2*4デュアルポート ターミナル数: 160ピン
コンタクトピン材料: リン青銅 絶縁材料: PBT
色: ニックシルバー 足の種類: ピンを押します
ライトパイプ: ライトパイプで 現在の評価: 1AMP
抵抗電圧: 1分間500V 絶縁体の抵抗: 500mΩ分(DC500Vで)
接触抵抗: 最大35mΩ 動作温度: -55°Cへの+105°C
コネクタの性別: 女性 連絡先タイプ: 小さなフォームファクタープラグ可能
仕上げる: ニッケル銀
ハイライト:

2x4 port SFP connector

,

160 pin SFP connector

,

SFP connector with light pipe

2-by-4 Multi-Port Female SFP Cage Assembly Connector with Light
Product Overview
The 2x4 Ports Housing Shielded Press-Fit Stackable 160P SFP Connector is a high-performance Small Form-factor Pluggable (SFP) module connector designed for data communication applications. First introduced in the early 2000s to replace GBIC connectors, SFP connectors offer greater port density while supporting data rates up to 4.25Gb/s. The SFP+ variant, introduced in 2006, extends this capability to 10Gb/s.
Key Features
Product Name: SFP Connector
Product Line: Small Form-factor Pluggable
Connector Gender: Female Centronic Connector
Number of Positions: 160pin
Ports: 2*4 (8 Ports)
Contact Material: Phosphor Bronze
Finish: Nickel Silver
Insulation Material: PBT
Lightpipe: Included
Electrical Specifications
Current Rating: 1AMP
Withstanding Voltage: 500V for one minute
Insulator Resistance: 500MΩ min (at DC500V)
Contact Resistance: 35MΩ Max
Operation Temperature: -55°C to +105°C
Product Images

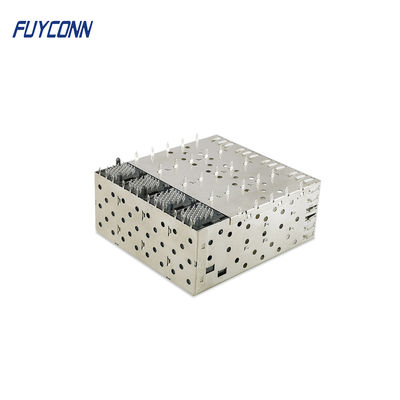

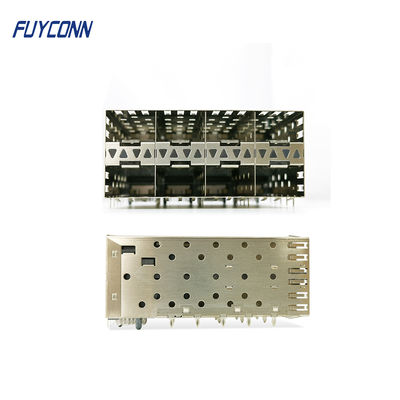

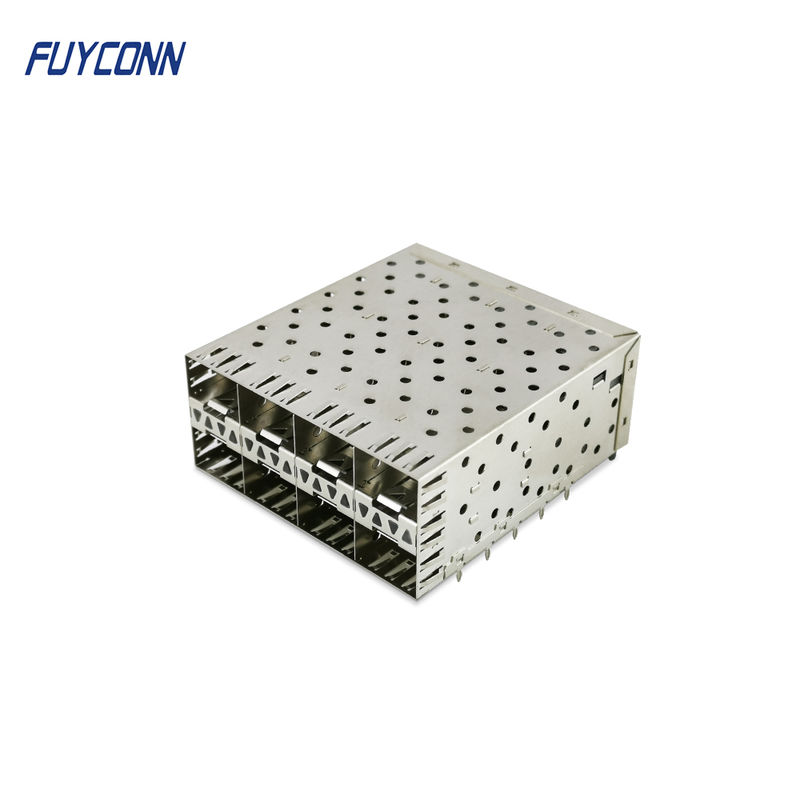

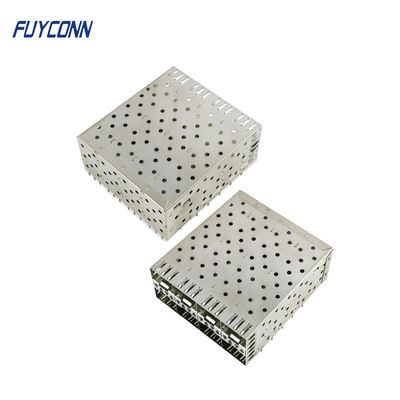

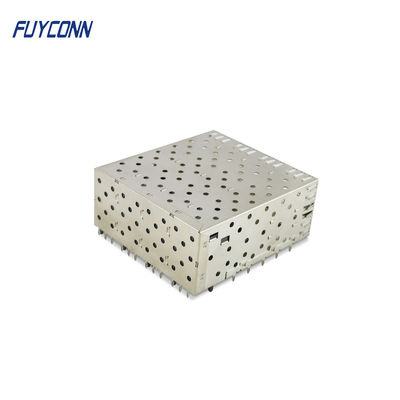

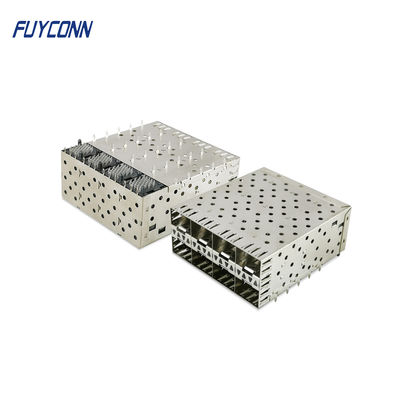

2x4 Port Female SFP Connector 160 Pin with Light Pipe 0
2x4 Port Female SFP Connector 160 Pin with Light Pipe 1
2x4 Port Female SFP Connector 160 Pin with Light Pipe 2
Applications
  • Networking equipment
  • Routers/Switches
  • Data/Communications systems
  • High-end servers
  • Telecommunications hardware
  • Fibre Channel and Gigabit Ethernet systems
Packaging & Shipping
Our products are carefully packaged to ensure safe delivery:
  • Vacuum Tray
  • PE Bag
  • Strong bags/boxes/cartons
  • PE Bag + Strips
2x4 Port Female SFP Connector 160 Pin with Light Pipe 3
2x4 Port Female SFP Connector 160 Pin with Light Pipe 4
About Dongguan Fuyconn Electronics Co., Ltd
Established in 2004, we specialize in IT and communication connectors with over 1,000 models available. Our 5,000 square meter ISO-certified facility includes R&D, molding, plastic injection, stamping, and assembly production lines. All products are UL- and SGS-certified, RoHS compliant, with a defect rate below 0.5%.
Why Choose Us
  • 16 years Centronic Connector production experience
  • Experienced R&D team
  • Thousands of molds available
  • UL Certified, ROHS compliant
  • Factory-direct pricing
  • Fast sample service (within 2 days)
  • Short lead times (1 week for standard products)
  • No MOQ requirements
  • Custom branding available
  • Full production control from molding to assembly
