| ポートの数: | 2*4デュアルポート | ピンの数: | 160ピン |
|---|---|---|---|
| コネクタの性別: | 女性 | 絶縁材料: | PBT |
| コンタクトピン材料: | リン青銅 | 現在の評価: | 1AMP |
| 抵抗電圧: | 1分間500V | 絶縁体の抵抗: | 500mΩ分（DC500Vで） |
| 接触抵抗: | 最大35mΩ | 動作温度: | -55°Cへの+105°C |
| 電源: | AC 220V | 最小債権: | 1000V |
| データ速度レート: | 最大4.25GB/s | トランスミッション速度: | 10GB/s（SFP+）まで |
| 仕上げる: | ニッケル銀 | ||

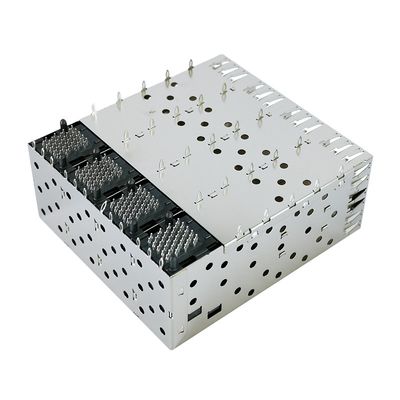

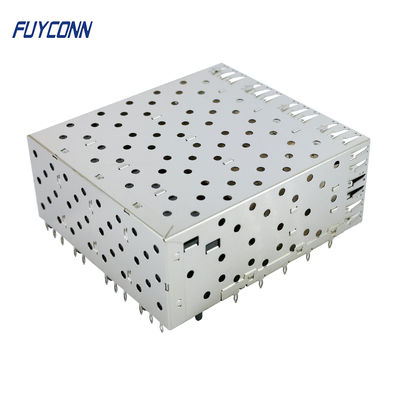

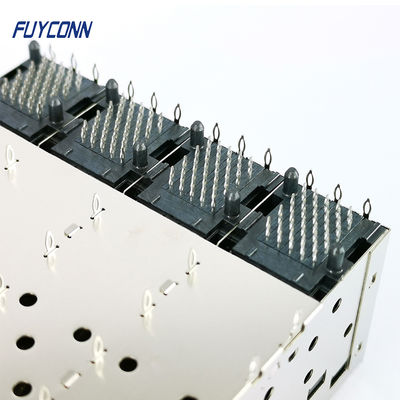

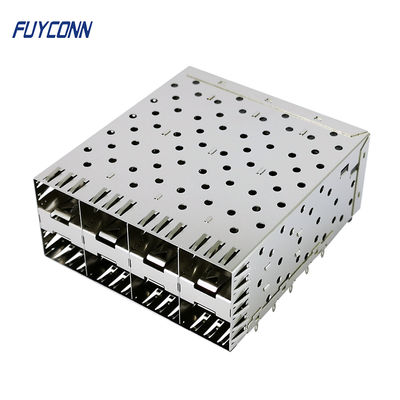

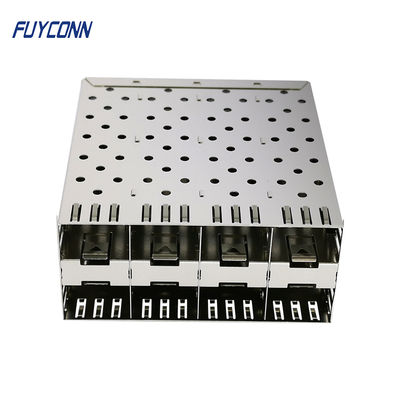

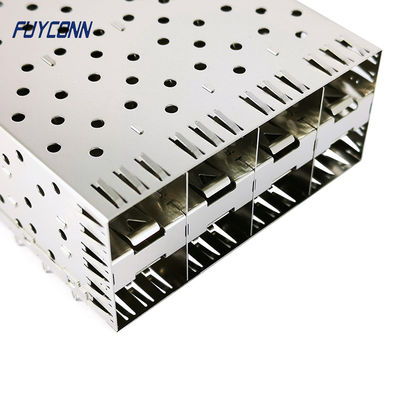

| ハイライト: | 160P SFP connector stackable for data center,2x4 ports SFP connector press-fit,female SFP connector with press-fit design |
||
The SFP (Small Form-factor Pluggable) module connector supports various data speeds and is a primary optical transceiver for data communication. Introduced in the early 2000s to replace GBIC connectors, SFP connectors offer greater port density while handling up to 4.25Gb/s, making them ideal for fiber optic and Ethernet high-speed networking systems.
Compliant with IEEE 802.3 and SFF-8472 specifications, SFP connectors support Gigabit Ethernet, Fibre Channel, SONET, and other communication standards. The enhanced SFP+ version, introduced in 2006, supports data rates up to 10Gb/s while maintaining the same compact size.
| Product Name | SFP Connector |
| Product Line | Small Form-factor Pluggable |
| Connector Gender | Female Centronic Connector |
| Number of Positions | 160pin |
| Ports | 2×4 (8 Ports) |
| Contact Material | Phosphor Bronze |
| Finish | Nickel Silver |
| Insulation Material | PBT |
| Current Rating | 1AMP |
| Withstanding Voltage | 500V for one minute |
| Insulator Resistance | 500MΩ min (at DC500V) |
| Contact Resistance | 35MΩ Max |
| Operation Temperature | -55°C to +105°C |
Established in 2004, we specialize in IT and communication connectors including Centronic IDC, PCB DIP, solder type, V.35, D-SUB, SCSI, and RJ series connectors. Our UL- and SGS-certified products comply with RoHS Directive and maintain a defect rate below 0.5%.
Our 5,000 sqm ISO 9001:2008 and ISO 14001:2004 certified facility includes R&D, molding, plastic injection, stamping, and assembly production lines.
