| ポートの数: | 2*1デュアルポート | ターミナル数: | 40ピン |
|---|---|---|---|
| コネクタの性別: | 女性 | 色: | ニックシルバー |
| 絶縁材料: | PBT | コンタクトピン材料: | リン青銅 |
| 足の種類: | はんだのないピン | ライトパイプ: | はい |
| 現在の評価: | 1AMP | 抵抗電圧: | 1分間500V |
| 絶縁体の抵抗: | 500mΩ分（DC500Vで） | 接触抵抗: | 最大35mΩ |
| 動作温度: | -55°Cへの+105°C | データ速度レート: | 最大10GB/s |
| 取り付けタイプ: | PCB | ||
| ハイライト: | 2 port SFP+ connector PCB mount,40 pin female SFP+ connector,SFP+ connector with light indicator |
||

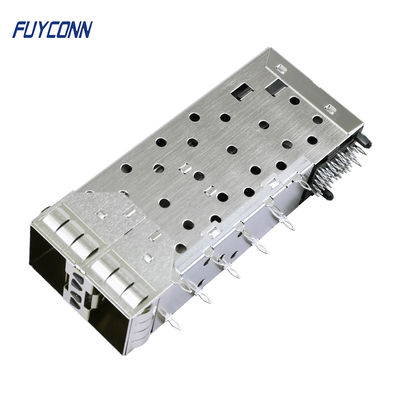

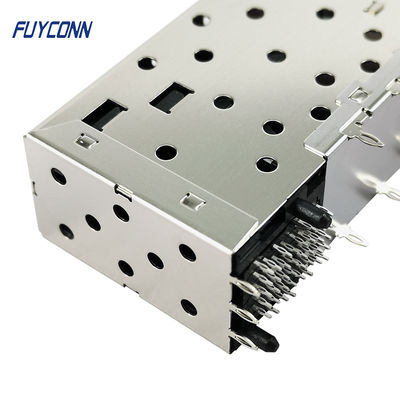

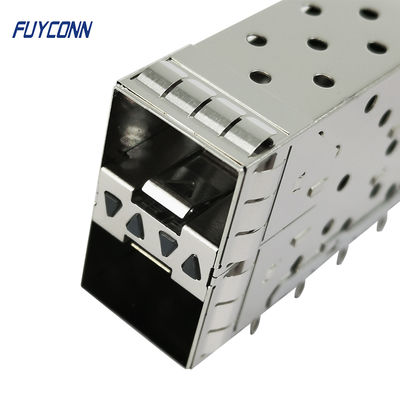

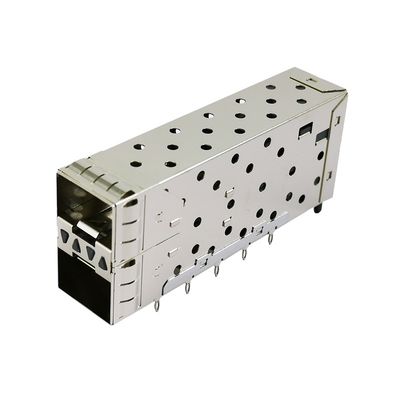

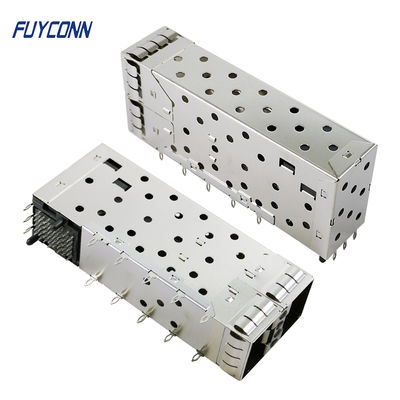

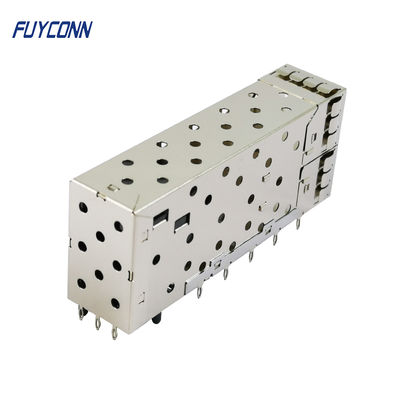

The SFP+ (Small Form-factor Pluggable Plus) connector is a high-performance optical transceiver designed for data communication applications. This 2x1 2-port configuration features press-fit termination and includes a lightpipe for status indication.
| Feature | Specification |
|---|---|
| Product Name | SFP Connector |
| Product Line | Small Form-factor Pluggable |
| Connector Gender | Female Centronic Connector |
| Contact Type | Small Form-factor Pluggable |
| Number of Positions | 40pin |
| Ports | 2x1 2 Ports |
| Contact Material | Phosphor Bronze |
| Finish | Nickel Silver |
| Insulation Material | PBT |
| Lightpipe | Yes |
| Parameter | Value |
|---|---|
| Current Rating | 1AMP |
| Withstanding Voltage | 500V for one minute |
| Insulator Resistance | 500MΩ min (at DC500V) |
| Contact Resistance | 35MΩ Max |
| Operation Temperature | -55°C to +105°C |
Our products are securely packaged using:
Established in 2004, we specialize in IT and communication connectors with over 1,000 models available. Our 5,000 square meter ISO-certified facility includes R&D, molding, plastic injection, stamping, and assembly production lines.
