2x1 Female SFP Connector 40 Pin with Light Pipe Press-Fit

Name: 2x1 Female SFP Connector 40 Pin with Light Pipe Press-Fit
Brand: Dongguan Fuyconn Electronics Co,.LTD
SKU: fuysfp2010-28
Price: 15 USD
Availability: InStock

すべての製品

Centronics のコネクター
(204)

DIN 41612のコネクター
(170)

SCSI コネクター
(67)

50 のピン centronics のコネクター
(57)

36 の Pin の Centronics のコネクター
(20)

64のPin Centronicのコネクター
(28)

V.35ルーターのコネクター
(11)

D 補助的なコネクター
(66)

IDC のケーブル会議
(14)

IDCのひだのコネクター
(31)

チャンピオンのコネクター
(91)

IEEE の 1284 のコネクター
(33)

RJ45コネクター
(9)

パラレルポートのコネクター
(44)

女性 PCB のコネクター
(49)

男性 PCB のコネクター
(28)

はんだのピンコネクタ
(36)

カードコネクター
(17)

SFPのコネクター
(16)

認証

オンラインです

2x1 Female SFP Connector 40 Pin with Light Pipe Press-Fit

大画像 : 2x1 Female SFP Connector 40 Pin with Light Pipe Press-Fit

商品の詳細:

起源の場所:	中国広州
ブランド名:	FUYCONN
モデル番号:	fuysfp2010-28

お支払配送条件:

最小注文数量:	100
価格:	$15

連絡先

2x1 Female SFP Connector 40 Pin with Light Pipe Press-Fit

説明

接触材料:	真鍮	性別:	女性、女性
端子数:	40ピン	ポートカウント:	2*1デュアルポート
色:	ニックシルバー	絶縁材料:	PBT
コンタクトピン材料:	リン青銅	足の種類:	ピンを押します
ライトパイプ:	ライトパイプで	現在の評価:	1AMP
抵抗電圧:	1分間500V	絶縁体の抵抗:	500mΩ分（DC500Vで）
接触抵抗:	最大35mΩ	動作温度:	-55°Cへの+105°C
データ速度レート:	最大4.25GB/s
ハイライト:	2x1 female SFP connector with light pipe , 40 pin press-fit SFP connector , female SFP connector with press-fit

2x1 Female SFP Connectors with Light Pipe Press-Fit Stackable Multi-Port Housing Shielded Cage Connector

Product Overview

The SFP (Small Form-factor Pluggable) module connector supports various data speeds and is widely used in data communication systems. Introduced in early 2000 to replace GBIC connectors, SFP connectors offer greater port density while supporting up to 4.25Gb/s according to IEEE 802.3 and SFF-8472 specifications. The SFP+ variant, introduced in 2006, extends this capability to 10Gb/s while maintaining the same form factor.

Key Features

Product Name:	SFP Connector
Product Line:	Small Form-factor Pluggable
Connector Gender:	Female Centronic Connector
Contact Type:	Small Form-factor Pluggable
Number of Positions:	40pin
Ports:	2x1 (2 Ports)
Contact Material:	Phosphor Bronze
Finish:	Nickel Silver
Insulation Material:	PBT
Lightpipe:	Included

Electrical Specifications

Current Rating:	1AMP
Withstanding Voltage:	500V for one minute
Insulator Resistance:	500MΩ min (at DC500V)
Contact Resistance:	35MΩ Max
Operation Temperature:	-55°C to +105°C

Applications

Networking equipment
Router/Switch
Data/Communications
High-end servers
Telecommunications
Switches
Telecommunications hardware
Fibre Channel and Gigabit Ethernet

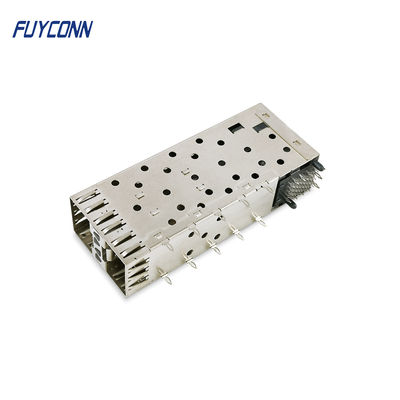

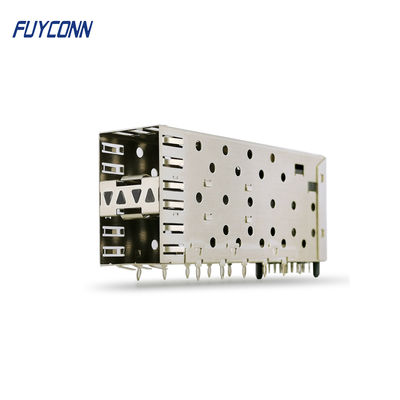

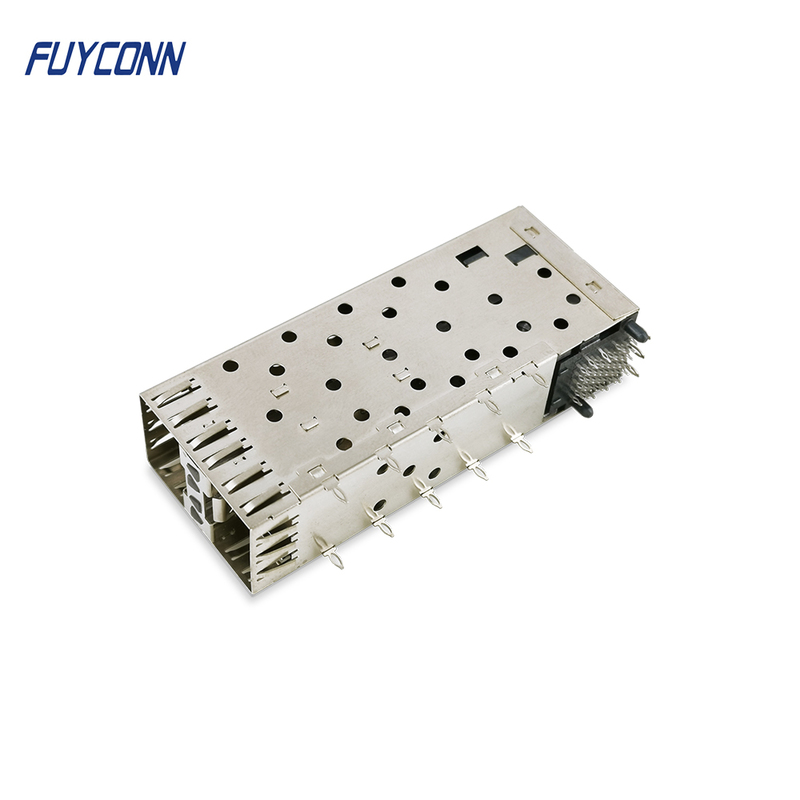

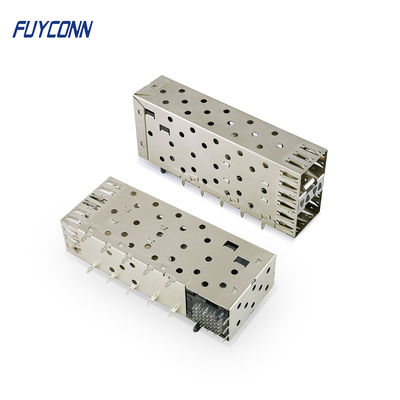

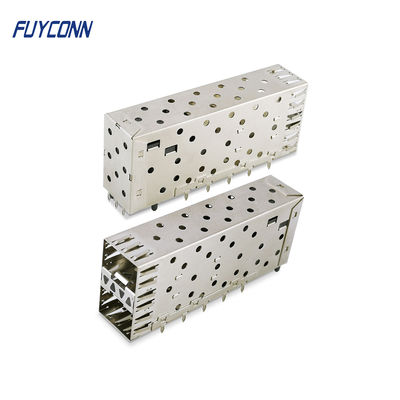

Product Images

Packaging & Shipping

Vacuum Tray
PE Bag
Strong bags/boxes/cartons
PE Bag + Strips

About Dongguan Fuyconn Electronics Co., Ltd

Established in 2004, Dongguan Fuyconn Electronics specializes in IT and communication connectors. Our main products include 57 series centronic IDC connectors, centronic PCB DIP type connectors, centronic solder type connectors, V.35 connector, D-SUB connector, SCSI series and RJ series. We have over 1,000 models for your choice.

Our products are UL- and SGS-certified and are compliant with the RoHS Directive. Our ISO 9001:2008- and ISO 14001:2004-certified factory covers 5,000 square meters with dedicated R&D, molding, plastic injection, stamping, and assembly facilities.
