| 接触材料: | 真鍮 | 性別: | 女性、女性 |
|---|---|---|---|
| タイプ: | SFP+、SFP+光ファイバーコネクタ | ポートの数: | 1*4デュアルポート |
| 色: | ニックシルバー | 絶縁材料: | PBT |
| コンタクトピン材料: | リン青銅 | FEETS: | ピンを押します |
| ライト: | 光なし | 現在の評価: | 1AMP |
| 抵抗電圧: | 1分間500V | 絶縁体の抵抗: | 500mΩ分(DC500Vで) |
| 接触抵抗: | 最大35mΩ | 動作温度: | -55°Cへの+105°C |
| ポート: | 1*4 4ポート | ||
| ハイライト: | 4 Port SFP+ cage connector,Press-fit SFP+ termination,1x4 SFP+ cage without light |
||

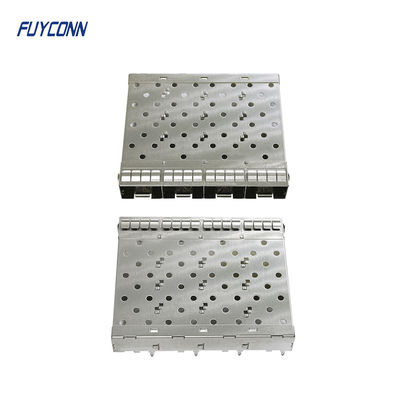

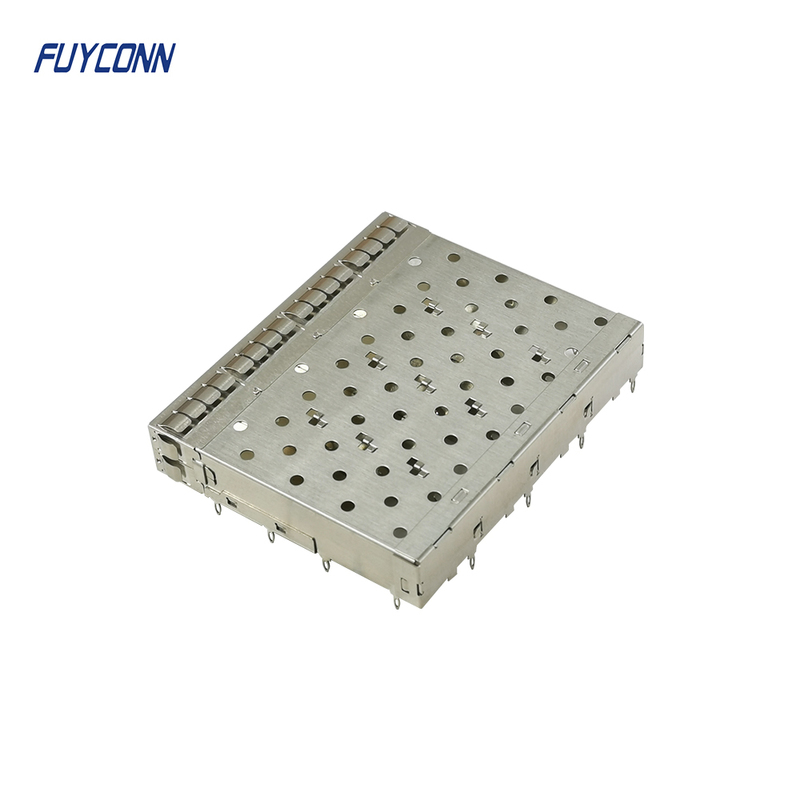

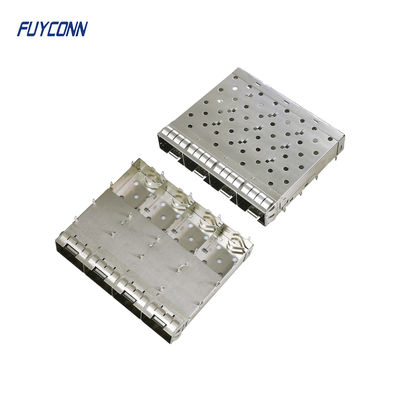

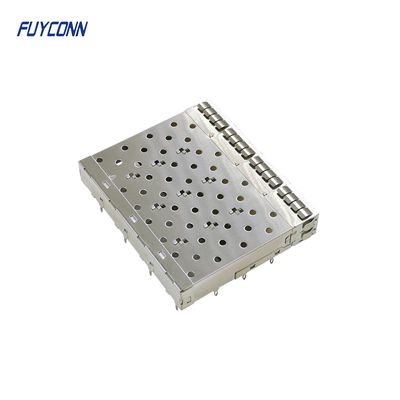

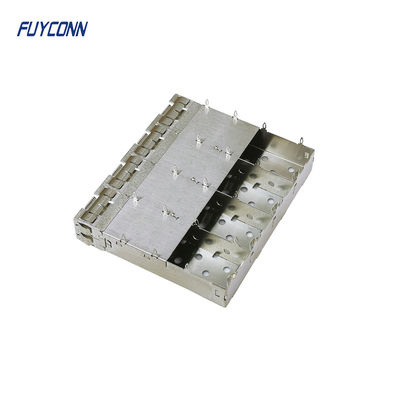

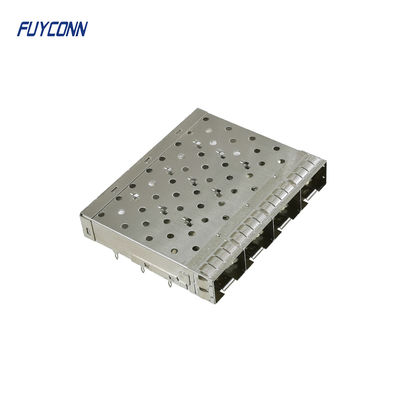

Press-Fit Termination 1x4 SFP+ Cage Without Light, 4 Ports SFP+ Series Connector Straight Solderless SFP+ Cage Product Overview The SFP+ (Small Form-factor Pluggable) cage connector is designed for high-speed data communication applications. This 4-port SFP+ series connector features press-fit termination and straight solderless design without lightpipe. Based on IEEE 802.3ae, SFF-8431, and SFF-8432 protocol specifications, it supports data rates up to 10Gb/s for Fibre
