| ピンの数: | 240ピン | ポートの数: | 2*6デュアルポート |
|---|---|---|---|
| 住宅資料: | 金属 | 絶縁材料: | PBT |
| コンタクトピン材料: | リン青銅 | コネクタの性別: | 女性、女性 |
| 現在の評価: | 1AMP | 抵抗電圧: | 1分間500V |
| 絶縁体の抵抗: | 500mΩ分(DC500Vで) | 接触抵抗: | 最大35mΩ |
| 動作温度: | -55°Cへの+105°C | ライトパイプ: | ライトパイプで |
| 連絡先タイプ: | 小さなフォームファクタープラグ可能 | 仕上げる: | ニッケル銀 |
| 形: | 矩形 | ||
| ハイライト: | 240 pin SFP+ fiber optic connector,dual port SFP+ connector with light pipe,2x6 SFP+ fiber optic connector |
||

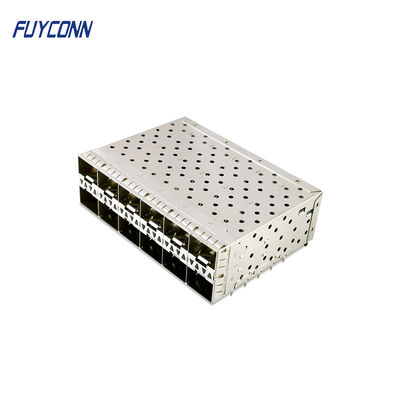

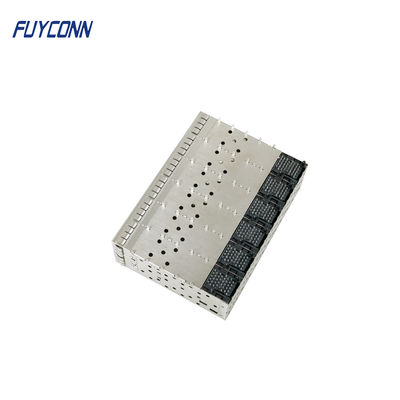

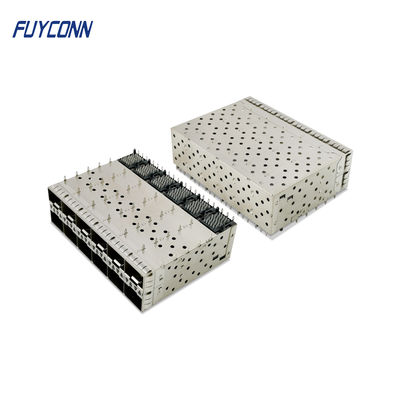

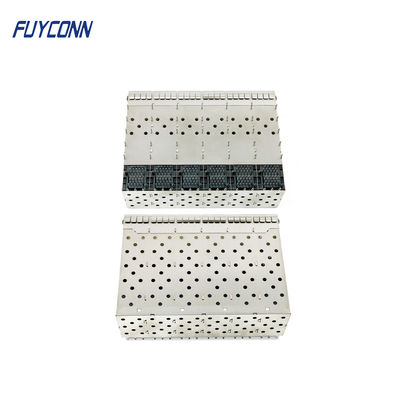

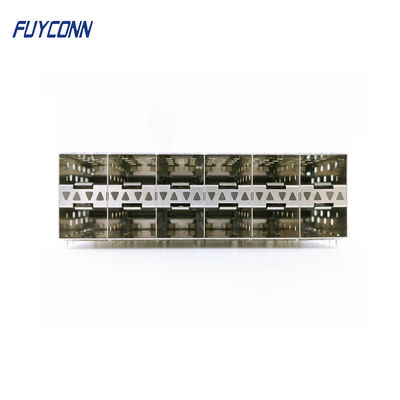

240 Pin Fiber Module Base Solderless Small Form-factor Pluggable Plus SFP+ Connector W/ Light, 2*6 Dual Port SFP Connector Product Description The SFP (Small Form-factor Pluggable) module connector with various data speed rates is a major optical transceiver used for data communication. First introduced in early 2000, SFP connectors were designed to replace the previous gigabit interface converter (GBIC) in fiber optic and Ethernet high-speed networking systems. Based on IEEE
