| 接触材料: | 真鍮 | 住宅資料: | 金属 |
|---|---|---|---|
| ターミナル番号: | 320ピン | ポートの数: | 2*8デュアルポート |
| 絶縁材料: | PBT | コンタクトピン材料: | リン青銅 |
| マウントタイプ: | ピンを押します | ライトパイプ: | それなし |
| 現在の評価: | 1AMP | 抵抗電圧: | 1分間500V |
| 絶縁体の抵抗: | 500mΩ分(DC500Vで) | 接触抵抗: | 最大35mΩ |
| 動作温度: | -55°Cへの+105°C | データ速度レート: | 最大10GB/s |
| コネクタの性別: | 女性のcentronicコネクター | ||
| ハイライト: | SFP+ connector 16 port,SFP+ connector 320 pin,SFP+ connector EMI gasket |
||

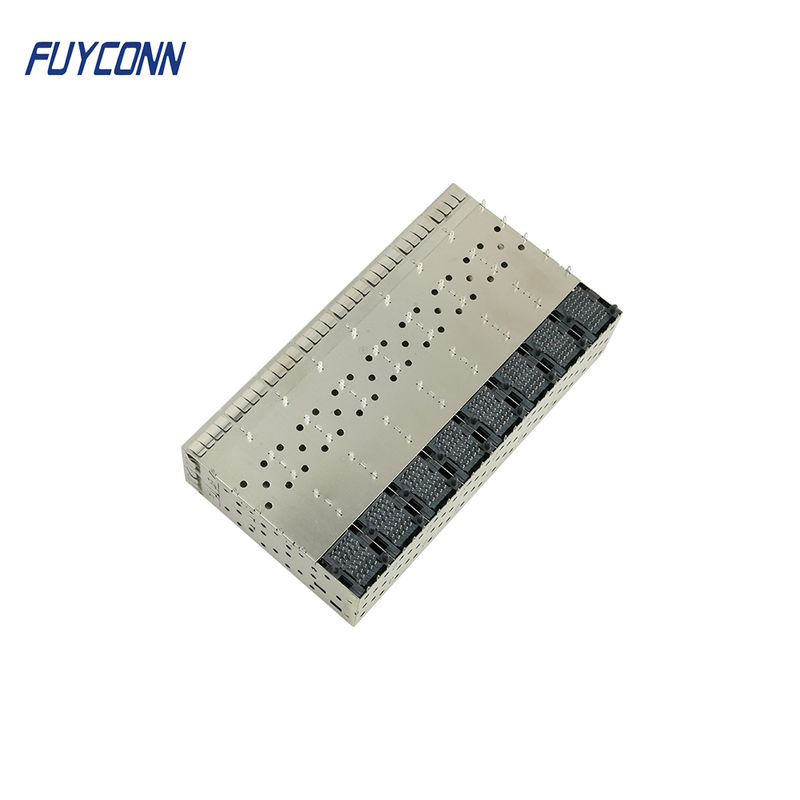

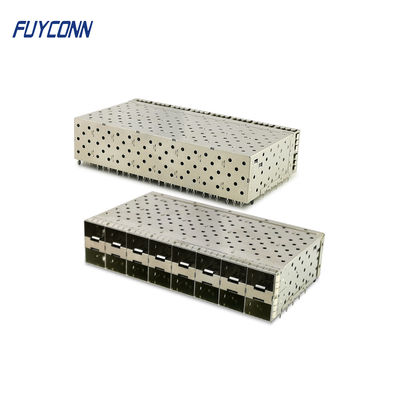

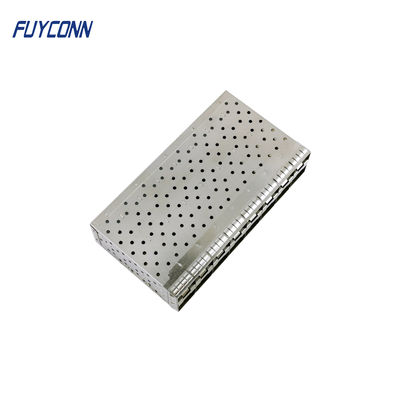

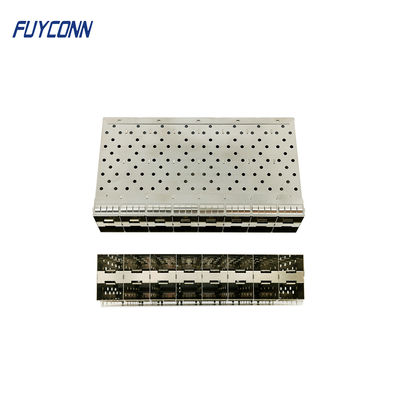

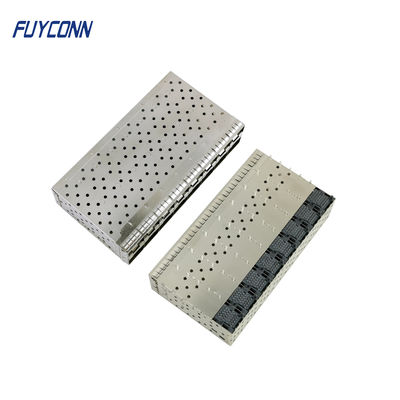

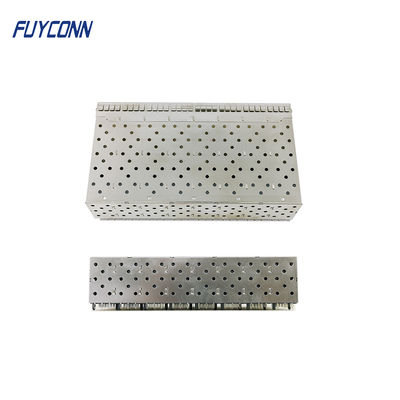

2x8 W/ EMI Gasket Integrate SFP+ Connector, SFP+ Series Connector 2x8 16 Port 320 Position Press Pin SFP Cage Assembly SFP+ Series Connector Overview The SFP (Small Form-factor Pluggable) module connector supports various data speeds and is a major optical transceiver for data communication. Introduced in early 2000 to replace GBIC connectors, SFP connectors offer greater port density while handling up to 4.25Gb/s based on IEEE 802.3 and SFF-8472 specifications. They support
