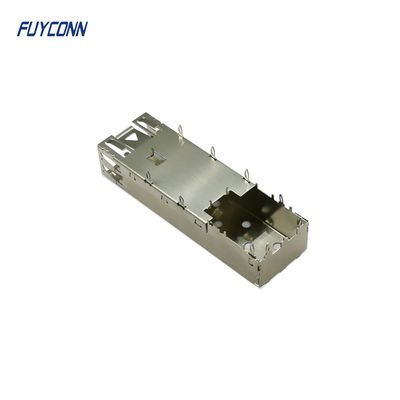

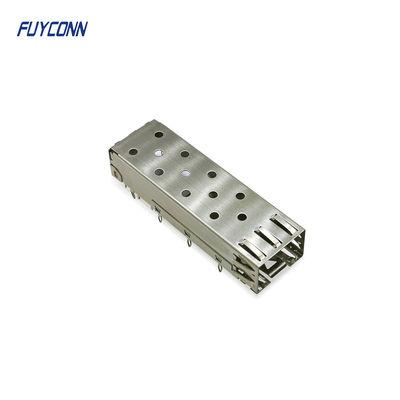

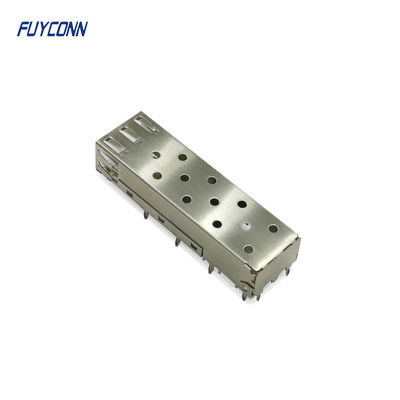

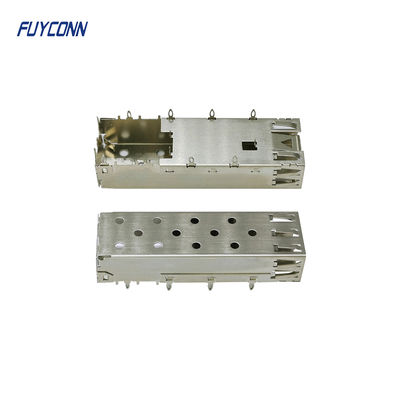

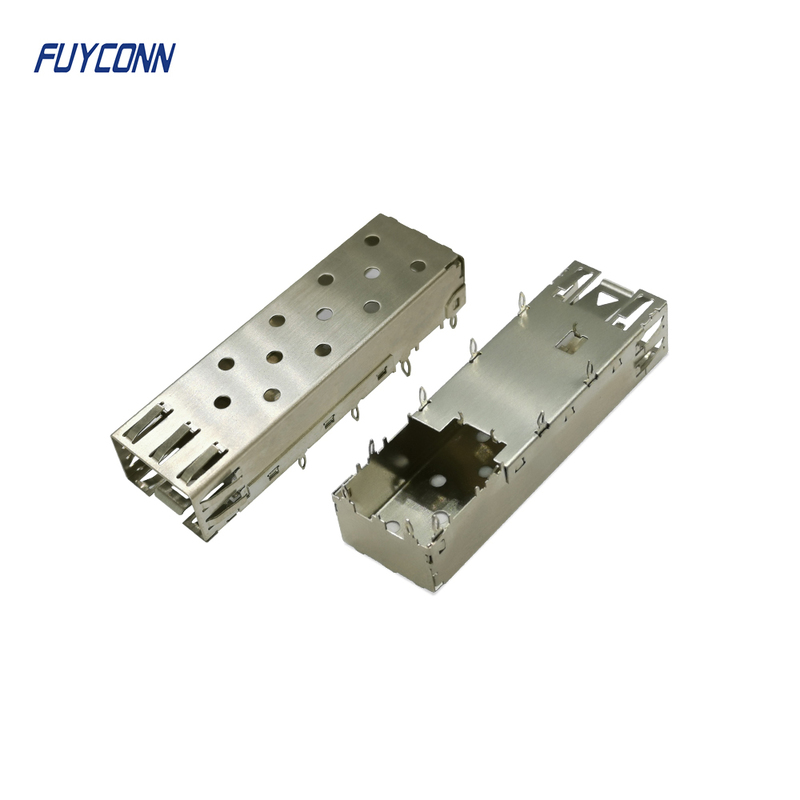

Press-Fit Termination 1-by-1 SFP Cage Without Light

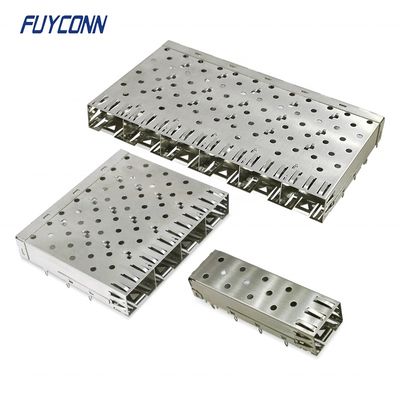

SFP Cage Series 1x1 dual 1 Port PCB Straight SFP Cage Connector
SFP (Small Form-factor Pluggable) module connector with various data speed rates is a major optical transceiver used for data communication. First introduced in early 2000, SFP connectors were designed to replace the previous gigabit interface converter (GBIC) in fiber optic and Ethernet high-speed networking systems. Based on IEEE 802.3 and SFF-8472 protocol specifications, SFP module connectors can handle up to 4.25Gb/s with greater port density than GBIC, earning them the nickname "mini GBIC."
In 2006, SFP+ (or SFP10) was introduced as an extension supporting data rates up to 10Gb/s (IEEE802.3ae, SFF-8431/8432). Both SFP and SFP+ support Gigabit Ethernet, Fibre Channel, SONET, OTN, and other standards, with copper and optical variants available.
Product Features
| Product Name: |
SFP Cage |
| Product Line: |
Small Form-factor Pluggable |
| Connector Gender: |
Female Centronic Connector |
| Contact Type: |
Small Form-factor Pluggable |
| Number of Position: |
No Connector, Cage only |
| Ports: |
1x1 1 Port |
| Finish: |
Nickel Silver |
| Lightpipe: |
Without Light |
Electrical Specifications
| Current Rating: |
1AMP |
| Withstanding Voltage: |
500V for one minute |
| Insulator Resistance: |
500MΩ min (at DC500V) |
| Contact Resistance: |
35MΩ Max |
| Operation Temperature: |
-55°C to +105°C |
Applications
- Networking equipment
- Router/Switch
- Data/Communications
- High-end servers
- Telecommunications
- Fibre Channel and Gigabit Ethernet
Packaging & Shipping
Strong Package Options: Vacuum Tray, PE Bag, Protective Boxes/Cartons, PE Bag + Strips
Company Profile
Dongguan Fuyconn Electronics Co., Ltd - Established in 2004, we specialize in IT and communication connectors including Centronic, V.35, D-SUB, SCSI, and RJ series with over 1,000 models available. Our UL- and SGS-certified, RoHS-compliant products maintain a defect rate below 0.5% with 99% customer retention.
Our 5,000 sqm ISO 9001:2008 and ISO 14001:2004 certified facility includes R&D, molding, plastic injection, stamping, and assembly production lines.
Why Choose Us
- 16 years Centronic Connector production experience
- R&D engineers with 20+ years' experience
- UL Certified, ROHS compliant
- Factory-direct pricing
- Free samples within 2 days
- Short lead time (1 week for standard products)
- No MOQ requirements
- Custom branding available
