320pin 2x8 Ports SFP Connector Female Press-Fit with Light

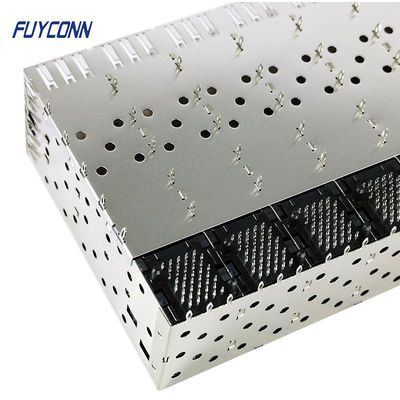

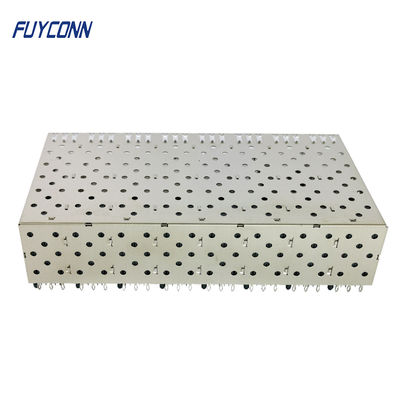

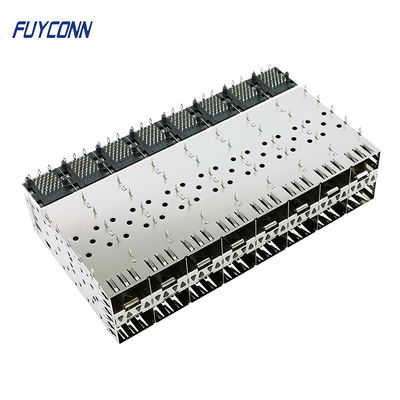

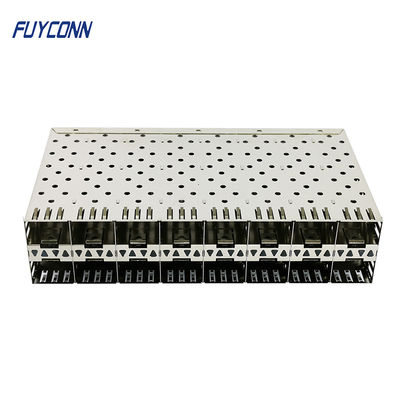

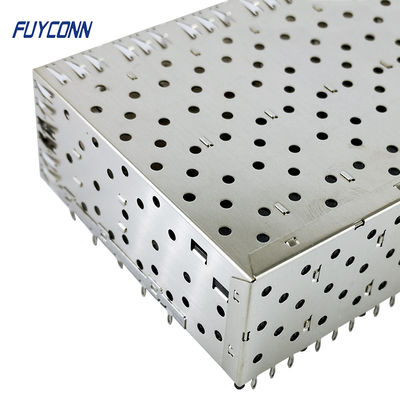

大画像 : 320pin 2x8 Ports SFP Connector Female Press-Fit with Light

商品の詳細:

起源の場所:	中国広州
ブランド名:	FUYCONN
モデル番号:	fuysfp2054-49

お支払配送条件:

最小注文数量:	100
価格:	$20

連絡先

320pin 2x8 Ports SFP Connector Female Press-Fit with Light

説明

ピンの数:	320pin	ポートの数:	2*8デュアルポート
コネクタの性別:	女性	絶縁材料:	PBT
コンタクトピン材料:	リン青銅	取り付けタイプ:	プレスフィット
ライトパイプ:	はい	現在の評価:	1AMP
抵抗電圧:	1分間500V	絶縁体の抵抗:	500mΩ分（DC500Vで）
接触抵抗:	最大35mΩ	動作温度:	-55°Cへの+105°C
データ速度レート:	10GB/s（SFP+）まで	仕上げる:	ニッケル銀
スタック可能:	はい
ハイライト:	320pin SFP connector female press-fit , 2x8 ports SFP connector with light , press-fit SFP connector with warranty

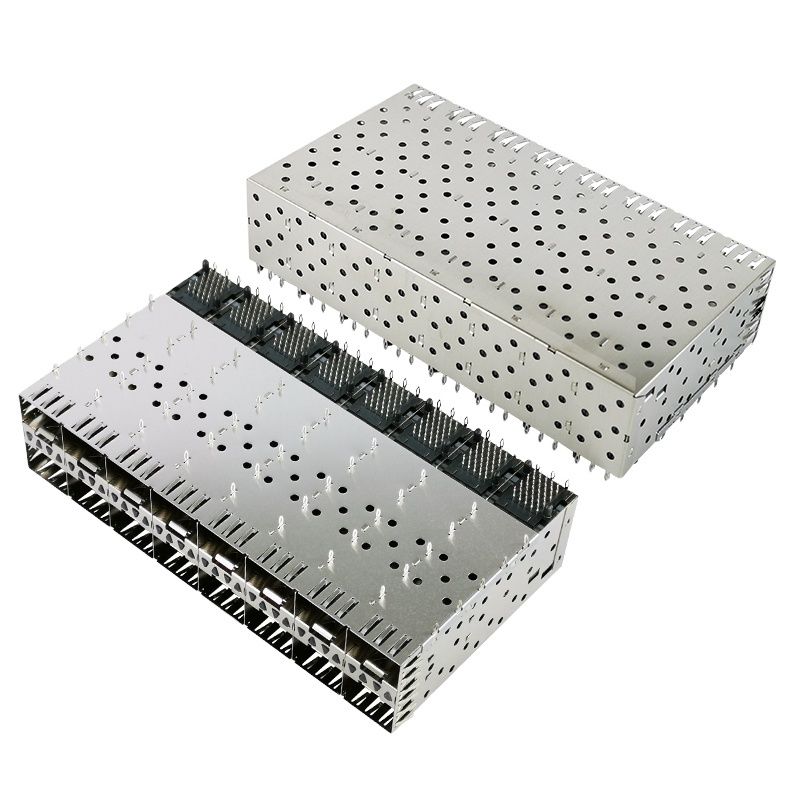

320pin Press-Fit Stackable 2x8 Ports SFP Connector with Light

SFP Cage Assembly 2-by-8 Multi-Port Female Connector

The SFP (Small Form-factor Pluggable) module connector supports various data speeds and is widely used in data communication systems. Introduced in the early 2000s to replace GBIC connectors, SFP connectors offer greater port density while handling up to 4.25Gb/s. These connectors support Gigabit Ethernet, Fibre Channel, SONET, and other communication standards.

The enhanced SFP+ version, introduced in 2006, supports data rates up to 10Gb/s while maintaining the same compact size. Both SFP and SFP+ connectors are available in copper and optical variants, making them versatile solutions for high-speed networking applications.

Product Features

Product Name:	SFP Connector
Product Line:	Small Form-factor Pluggable
Connector Gender:	Female Centronic Connector
Number of Positions:	320pin
Ports:	2×8 (16 Ports)
Contact Material:	Phosphor Bronze
Finish:	Nickel Silver
Insulation Material:	PBT
Lightpipe:	Included

Electrical Specifications

Current Rating:	1AMP
Withstanding Voltage:	500V for one minute
Insulator Resistance:	500MΩ min (at DC500V)
Contact Resistance:	35MΩ Max
Operation Temperature:	-55°C to +105°C

Applications

Networking equipment
Router/Switch systems
Data/Communications infrastructure
High-end servers
Telecommunications hardware
Fibre Channel and Gigabit Ethernet systems

Packaging & Shipping

Our products are securely packaged using:

Vacuum trays for protection
PE bags for moisture resistance
Sturdy boxes/cartons for shipping
PE bags with strips for added security

About Dongguan Fuyconn Electronics Co., Ltd

Established in 2004, we specialize in IT and communication connectors with over 1,000 models available. Our UL- and SGS-certified products comply with RoHS directives and maintain a defect rate below 0.5%. Our 5,000 square meter ISO-certified facility includes R&D, molding, plastic injection, stamping, and assembly production lines.
